80 GHz Non-Contact Radar

Superior performance & accuracy

The BinMaster family of non-contact radar level sensors provides continuous level measurement in solids, powders, and liquids. The 80 GHz frequency focused in a narrow 4° to 8° beam angle detects reflections from any media making it extremely precise and dependable. The gold standard NCR-86 has a measuring range up to 393 feet. The CNCR compact non-contact radar is an excellent alternative for distances up to 98 feet.

Coupled with BinCloud® inventory management software, 80 GHz radar is a game changer for bulk material management. BinMaster experts are here to help you configure the best 80 GHz radar for your application.

NCR-80 viewed from top and side

All Around Radar

The gold standard

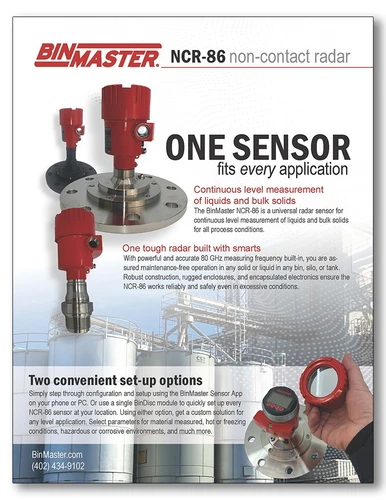

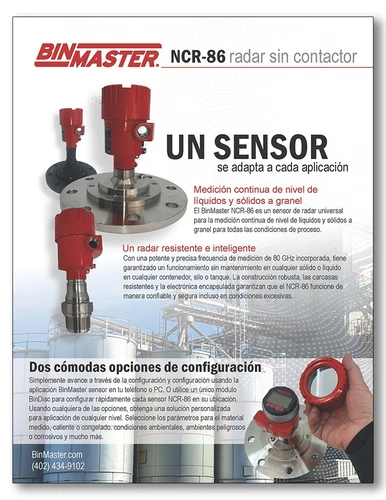

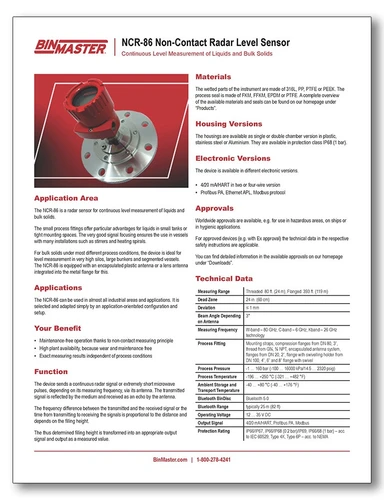

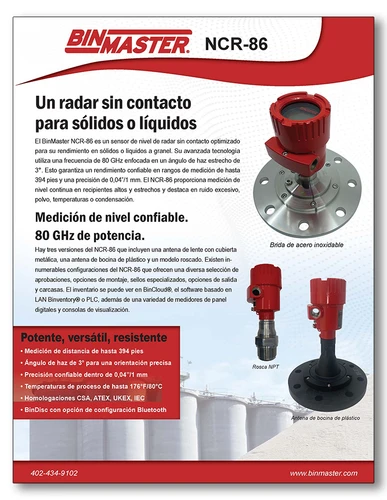

The NCR-86 is BinMaster’s most versatile and robust radar. This sensor measures either solids or liquids, making it the ideal level measurement solution for material of any bulk density or specific gravity. There are three versions of the NCR-86 including a metal-jacketed lens antenna, a plastic horn antenna, and a 1-1/2” NPT threaded model making it highly adaptable to many materials and industries.

There are countless configurations of the NCR-86 offering a diverse selection of approvals, mounting options, specialized seals, output options, and housings. Inventory can be viewed on any of the BinCloud® web applications, Binventory® LAN-based software, or PLC as well as C-100-R consoles and digital panel meter displays.

Maintenance-Free Antenna System

The NCR-86 antenna lens is encased in a sealed antenna system. It is resistant to dust buildup and virtually maintenance-free. Its flush face does not protrude into the vessel to prevent potential damage to the sensor. The plastic lens is made of durable, PEEK plastic for ruggedness and long-lasting performance. It is chemical resistant for tough applications and has FDA approval making it suitable for food and pharmaceutical use.

Plastic AntennaStainless Steel Flange1-1/2" NPT Threaded
Frequency79 Ghz79 Ghz79 Ghz
Antenna Type3.15" (80mm) plastic horn antennaMetal jacketed lens antennaintegrated horn antenna
Measuring Range393 feet (120 m)292 feet (120 m)80 feet (24 m)
Beam angle
Accuracy≤ 1 mm≤ 1 mm≤ 1 mm
Power Requirements9.6-48 VDC, 90-253 VAC9.6-48 VDC, 90-253 VAC9.6-48 VDC, 90-253 VAC
Ambient Temperature'-40 to +80 °C (-40 to +176 °F)'-40 to +80 °C (-40 to +176 °F)'-40 to +80 °C (-40 to +176 °F)
Process Temperature'-196 to +80 °C (-321 to +176 °F)'-196 to +450 °C (-321 to +842 °F)'-196 to +450 °C (-321 to +842 °F)
Process PressureCompression Flange: -1 to 2 bar (-100 to 200 kPa/-14.5 to 29.00 psig)  Adapter Flange: -1 to 1 bar (-100 to 100 kPa/-14.5 to 14.5 psig)-1 to 25 bar (-100 to 2500 kPa/-14.5 to 362.6 psig)-316L: -1 to 40 bar (-100 to 4000 kPa/-14.5 to 580.2 psig) PVDF: -1 to 3 bar (-100 to 300 kPa/-14.5 to 43.51 psig)
Mounting3”, 4”, or 8” swiveling flange with 8° adjustable aiming or mounting strap4”, 6”, or 8” swiveling flange with 10° adjustable aiming.75", 1.0", 1.5", or 2" NPT process connection
Housing MaterialPlastic, Painted Aluminum, or Stainless SteelPlastic, Painted Aluminum, or Stainless SteelPlastic, Painted Aluminum, or Stainless Steel
Enclosure RatingIP66/IP67, IP66/IP68 (0.2 bar), IP68 (1 bar), IP69K, NEMA Type 4X, NEMA Type 6PIP66/IP67, IP66/IP68 (0.2 bar), IP68 (1 bar), IP69K, NEMA Type 4X, NEMA Type 6PIP66/IP67, IP66/IP68 (0.2 bar), IP68 (1 bar), IP69K, NEMA Type 4X, NEMA Type 6P
ApprovalsCSA (XP), CSA (DIP), ATEX/UKEX (XP), ATEX/UKEX (DIP), IEC (XP), IEC (DIP)CSA (XP), CSA (DIP), ATEX/UKEX (XP), ATEX/UKEX (DIP), IEC (XP), IEC (DIP)CSA (XP), CSA (DIP), ATEX/UKEX (XP), ATEX/UKEX (DIP), IEC (XP), IEC (DIP)
OutputTwo-wire 4 - 20 mA/HART®, Four-wire 4 - 20 mA, Modbus RTUTwo-wire 4 - 20 mA/HART®, Four-wire 4 - 20 mA, Modbus RTUTwo-wire 4 - 20 mA/HART®, Four-wire 4 - 20 mA, Modbus RTU
Operating voltage12 to 35 V DC12 to 35 V DC12 to 35 V DC
Bluetooth StandardBluetooth 5.0Bluetooth 5.0Bluetooth 5.0

How they work

Signals and echos

80 GHz Radar Signal

The sensor transmits a continuous 80 GHz radar signal through the face of the antenna. The signal is reflected off the material surface and received as an echo by the antenna. The frequency difference between the sent and received signals is converted to a measurement that represents the distance to the material surface.

The distance is calculated based on the vessel height programmed into the unit when it is set up. Setup can be performed without the vessel being emptied to save time.

The measurement output is the distance from the face of the antenna to the material surface. Measurements are displayed in inches, feet, or meters.

Why use 80 GHz technology?

Non-contact radar technology delivers extremely high measurement accuracy of +/-0 .2 inches.

In solids

80 GHz radar performs reliably in harsh conditions and dusty environments and far surpasses the performance of its 26 GHz predecessors. BinMaster sensors utilize 80 GHz technology to focus the radar signal in a very narrow beam angle. This means the measurement point can be targeted to avoid structure in a vessel or a filling stream.

In liquids

Radar level sensors are superior to using ultrasonic sensors or pressure transmitters to measure liquid levels contained in tanks or open-air applications. BinMaster non-contact radars are extremely dependable in condensation, turbulence, and foam. The narrow beam can be used in confined vessels or standpipes and aimed to avoid agitators, pipes, or structures that could interfere with the signal.

Radar Measurements are not affected by:

  • changing process conditions like fluctuating temperature or pressure
  • excessive humidity, steam, or vapors
  • noise from process operations, filling, conveyors, or railcars
  • buildup or condensation that occurs on the sensor face

More Mounting Flexibility

With multiple mounting options, there is no on-site fabrication needed. Plus, you will likely be able to use an existing roof flange. This will simplify installation while saving you time and money. BinMaster offers a wide variety of mounting plates for angled roofs as well as swiveling flanges and mounting straps that allow for aiming.

Swivel Mounts for Aiming

For aiming flexibility, a 10° swiveling holder for the metal jacketed version of the NCR-80 comes in 4”, 6”, or 8” flange sizes to allow for precise aiming to the output of the vessel. For the NCR-80 plastic horn antenna version, 8° directional aiming is available with 3”, 4”, 6”, or 8” adapter flanges.

Flat and Angled Mounting Plates

Not all roofs are flat throughout the process industries. Therefore, in addition to the affordable 0° mounting plate, BinMaster offers 10°, 30°, and 45° mounting plates with a 4” ANSI flange. The 30° angle is especially prominent in the grain industry, where dust-penetrating 80 GHz non-contact radar is a popular sensor in corn and soybeans.

CNCR Compact

The CNCR series of 80 GHz compact non-contact radar level sensors have a measuring range up to 26, 49, or 98 feet depending on the model selected. Use them in smaller bins, tanks, or silos or where space is tight. Rugged and weather resistant, they can also be used in outdoor municipal or environmental applications or over pits and lagoons for animal waste management. You can install the CNCR in existing vessel openings, use a BinMaster swivel mount, wall mounting bracket, or mounting plate, or non-intrusively when measuring levels in plastic vessels.

Small Sensors with Big Benefits

80 GHz technology, narrow 8° beam works reliably in challenging conditions

Simple installation and setup, fast setup using Bluetooth on a cell phone

No dead zone, measures right up to the face of the sensor

Chemical resistant enclosure, IP rated for protection against dust and water ingress

Compact design fits in tight spaces, installs through existing openings

Real-time measurement to BinCloud® software or integrated into a plant’s PLC

Increases safety, no climbing tanks, working over open tanks or sumps, or in confined spaces

No maintenance, low cost of ownership

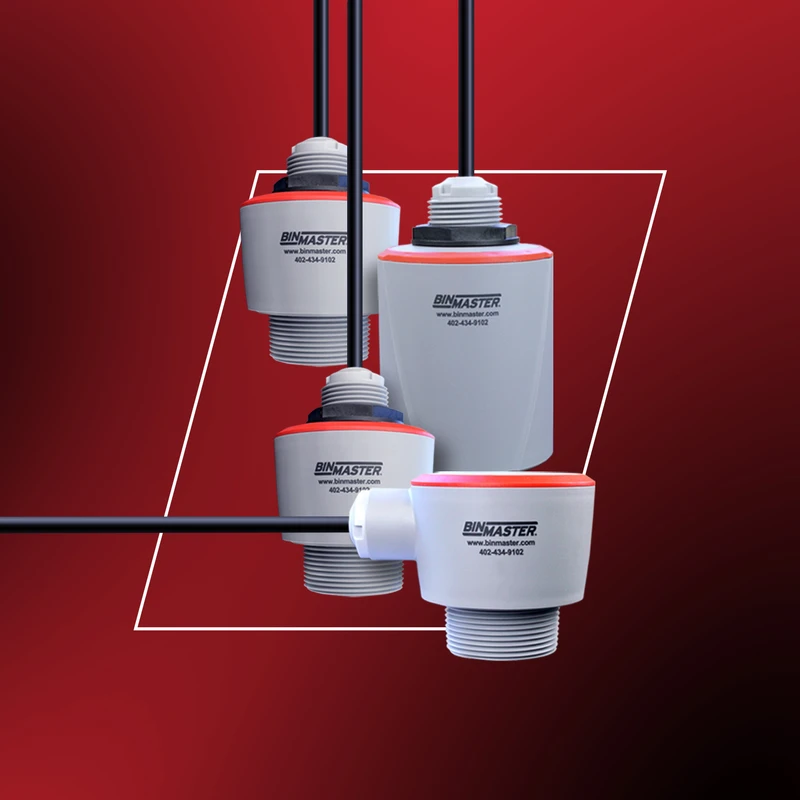

Cabled Sensors - 100 Series

The CNCR-110, 120, 130, and 190 all install using a polyurethane pigtail connection cable. They are built tough enough for use in chemicals or outdoor applications needing a high level of environmental protection. These sensors are rated to IP66/IP68 (3 bar) with housings made from durable PVDF material that has excellent chemical, abrasion, flame resistance, and UV stability. The FKM seal provides heat and chemical resistance for long-lasting durability.

These sensors are offered with a variety of hazardous location approvals. Contact sales for the latest updates on certified units.

CNCR-110: 26 feet

The 110 is the ideal sensor for non-contact level measurement at distances up to 26 feet. It features a two-wire 4-20 mA output and is offered with either a 1.5-inch threaded or straight NPT connection. The cable outlet is on the top of the sensor. This sensor is offered only with a 32-foot cable connection.

CNCR-120 and CNCR-130: 49 feet

The 120 and 130 sensors are suited for non-contact level measurement at distances up to 49 feet. They are offered with either a two-wire 4-20 mA or four-wire Modbus output and a choice of a 1.5-inch threaded or straight NPT connection. The 120 model has the cable outlet on the top for mounting on the top of the vessel, whereas the 130 model has the cable outlet on the side.

CNCR-190: 98 feet

The 190 model is for non-contact level measurement at distances up to 98 feet. It is offered with either a two-wire 4-20 mA or four-wire Modbus output and features a 1.0-inch threaded or straight NPT connection. The cable outlet is on the top of the sensor.

 CNCR-110CNCR-120CNCR-130CNCR-190
Measuring PrincipleRadarRadarRadarRadar
Measuring Range26 ft. (8 M)49 ft. (15 M)49 ft. (15 M)98 ft. (30 M)
Frequency80 GHz80 GHz80 GHz80 GHz
Beam Angle
Dead ZoneNoneNoneNoneNone
Accuracy≤ 0.2” (5 mm)≤ .08” (2 mm)≤ .08” (2 mm)≤ .08” (2 mm)
Voltage12 to 35 VDC12 to 35 VDC, 8-30 VDC12 to 35 VDC, 8-30 VDC12 to 35 VDC, 8-30 VDC
Output2-wire 4-20 mA2-wire 4-20 mA, 4-wire Modbus2-wire 4-20 mA, 4-wire Modbus2-wire 4-20 mA, 4-wire Modbus
Enclosure MaterialPVDFPVDFPVDFPVDF
Seal MaterialFKMFKMFKMFKM
Enclosure RatingIP66/IP68 (3 bar)IP66/IP68 (3 bar)IP66/IP68 (3 bar)IP66/IP68 (3 bar)
Mounting1.5” Threaded NPT, 1.5” Threaded Straight1.5” Threaded NPT, 1.5” Threaded Straight1.5” Threaded NPT, 1.5” Threaded Straight1.0” Threaded NPT, 1.0” Threaded Straight
Connection32 ft. (10 m)16 ft. (5 m), 32 ft. (10 m), 82 ft. (25 m)16 ft. (5 m), 32 ft. (10 m), 82 ft. (25 m)16 ft. (5 m), 32 ft. (10 m), 82 ft. (25 m)
Process
Pressure
-14.5 to +43.51 psi (-1 to +3 bar/-100 to +300 kPa)-14.5 to +43.51 psi (-1 to +3 bar/-100 to +300 kPa)-14.5 to +43.51 psi (-1 to +3 bar/-100 to +300 kPa)-14.5 to +43.51 psi (-1 to +3 bar/-100 to +300 kPa)
Process Temperature-40° to +140°F (-40° to +60°C)-40° to +176°F (-40° to +80°C)-40° to +176°F (-40° to +80°C)-40° to +176°F (-40° to +80°C)
Ambient Temperature -40° to +140°F
(-40° to +60°C)
-40° to +176°F (-40° to +80°C)-40° to +176°F (-40° to +80°C)-40° to +176°F (-40° to +80°C)
Approvals Ask your sales representative for the most recent updates

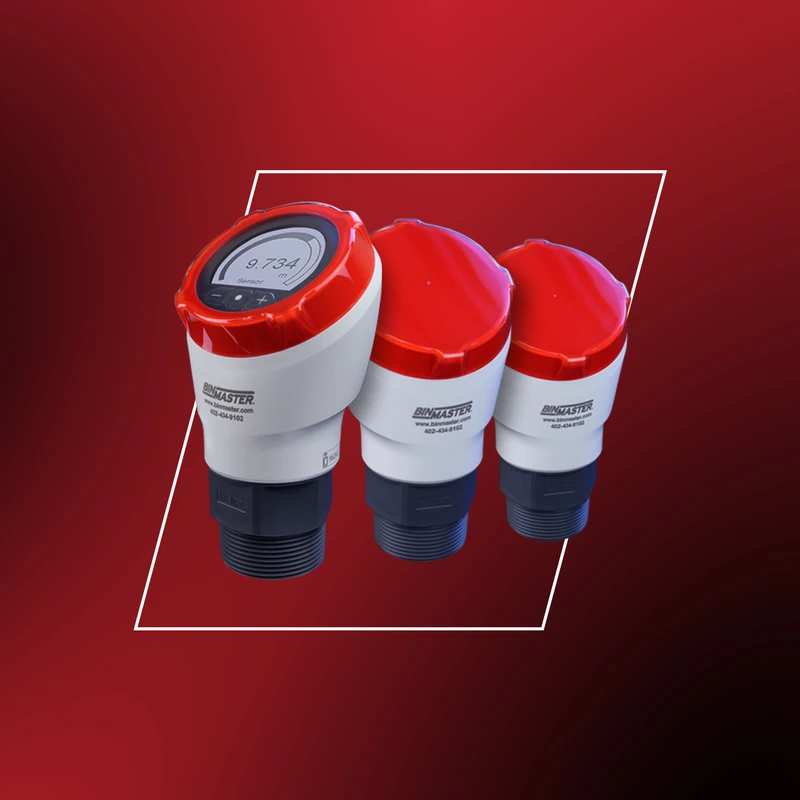

Threaded NPT Models - 200 Series

The CNCR-200 series can measure levels through the tank wall of a plastic storage tank or IBC.

The 210, 220, and 230 all mount using a 1.5” threaded NPT or 1.5” threaded straight NPT connection. They are wired using a ½” NPT connection and feature a two-wire 4-20 MA output. The enclosures are rated IP66/IP67, Type 4X to protect them from dust and water damage.

 CNCR-210CNCR-220CNCR-230
Measuring PrincipleRadarRadarRadar
Measuring Range26 ft. (8 M)49 ft. (15 M)49 ft. (15 M)
Frequency80 GHz80 GHz80 GHz
Beam Angle
Dead ZoneNoneNoneNone
Accuracy≤ 0.2” (5 mm)≤ 0.2” (5 mm)≤ 0.2” (5 mm)
Voltage12 to 35 VDC12 to 35 VDC12 to 35 VDC
Output2-wire 4-20 mA2-wire 4-20 mA2-wire 4-20 mA
Enclosure MaterialPVDFPVDFPVDF
Seal MaterialFKMFKMFKM
Enclosure RatingIP66/IP67, Type 4XIP66/IP67, Type 4XIP66/IP67, Type 4X
DisplayNoneNoneLED Display
Mounting1.5” Threaded NPT, 1.5” Threaded Straight1.5” Threaded NPT, 1.5” Threaded Straight1.5” Threaded NPT, 1.5” Threaded Straight
ConnectionOne 1/2" NPT without plug in either openingOne 1/2" NPT without plug in either openingOne 1/2" NPT without plug in either opening
Process Pressure-14.5 to +43.51 psi (-1 to +3 bar/-100 to +300 kPa)-14.5 to +43.51 psi (-1 to +3 bar/-100 to +300 kPa)-14.5 to +43.51 psi (-1 to +3 bar/-100 to +300 kPa)
Process Temperature-40° to +140°F (-40° to +60°C)40° to +176°F (-40° to +80°C)-40° to +176°F (-40° to +80°C)
Ambient Temperature-40° to +140°F (-40° to +60°C) -40° to +158°F (-40° to +70°C) -40° to +158°F (-40° to +70°C)

The CNCR-210 has a measuring distance up to 26 feet, while the CNCR-220 can go as far as 49 feet. The CNCR-220 has a range up to 49 feet and the CNCR-230 has an LED display making reading levels accessible from the sensor.

Hazardous location approvals on the CNCR-200 series are available. Contact sales for the latest updates.

The CNCR-200 series sensors are particularly suitable for use in:

  • agricultural chemicals
  • water treatment plants
  • beverage processing
  • acid or lye storage tanks
  • additive tanks in all industries

Mounting the CNCR

Wall Mounting Bracket

The CNCR can be mounted using a wall mounted bracket made of stainless steel that extends either 3.25 or 8.0 inches into the vessel. The wall mounted bracket is offered with a 1.0 or 1.5-inch opening. A stainless-steel ceiling-mounted bracket with a 1.5-inch opening is also available.

Swivel Mounts

If aiming is desired, select a 1.5-inch swivel mount made of impact resistant plastic that can swivel in one direction up to 40°.

Mounting Plates

All CNCR sensors except the CNCR-190 can also be used with a powder-coated, carbon steel 1.5-inch NPT mounting plate in 0°, 5°, 10°, and 30° angles. The CNCR-190 uses a 1.0-inch flat mounting plate.

Both the NCR-80 and CNCR compact 80 GHz radar level sensors have these great features.

Reliable level measurement

80 GHz of power

Select an NCR-86 or CNCR compact 80 GHz radar level sensor and enjoy these features.

  • Reliable level measurement
  • 80 GHz of power
  • Dependable accuracy within 1mm
  • Rapid signal processing updates in seconds
  • 4-20 mA/HART and Modbus outputs
  • Resistant to dust buildup
  • Immune to steam and condensation
  • CSA and ATEX hazardous location approvals
  • Bluetooth & BinDisc setup options

Bluetooth App

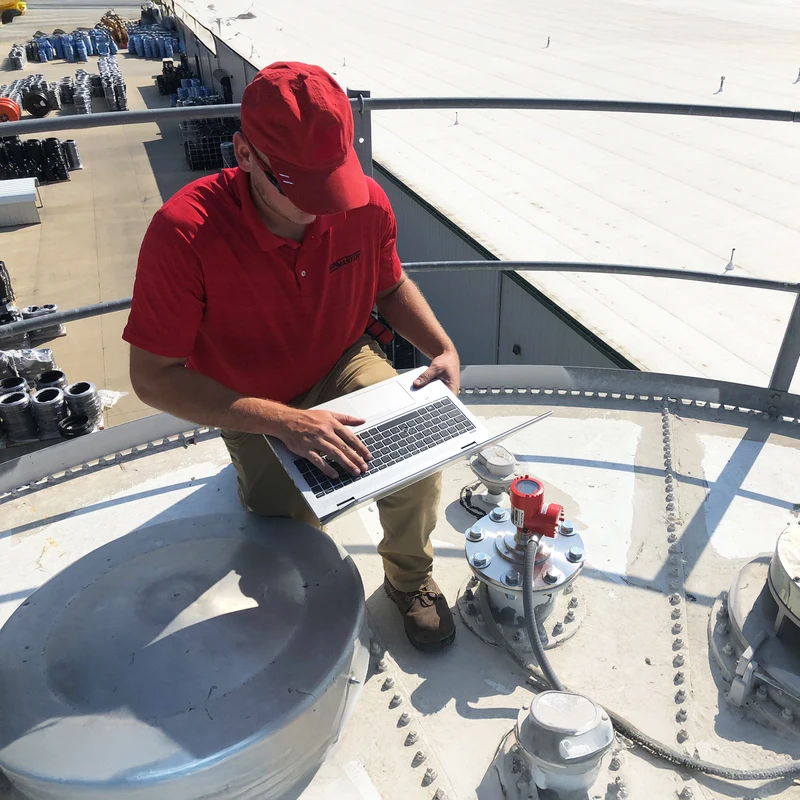

BinMaster’s radar level sensors are set up using a Bluetooth app downloaded to a cell phone or tablet. Wireless Bluetooth technology automatically transfers information from your phone to the sensor for configuration.

View level measurements and change bin parameters via the app at distances up to 80 feet from the sensor. Safely monitor levels and make parameter adjustments without climbing tanks.

Like a big screen? Do your setup on a PC using a Bluetooth USB adapter.

Setup with BinDisc

An optional BinDisc interface enables push-button setup and configuration on the sensor face. BinDisc is also available with a Bluetooth option to set up the sensor on a cell phone. Simply screw off the lid and screw in a BinDisc into the housing, where it is visible through the cap.

BinDisc simplifies setup and provides continuous, at-a-glance, operational status of the sensor. Only one BinDisc is needed to set up multiple sensors, saving money. This handy interface aids in on-site system diagnosis.

Narrow Beam Angle for Pinpoint Focus

The narrow beam angle allows for precise aiming to avoid the flow stream, internal structure, agitators, or sidewall buildup. Narrow focusing also simplifies setup, as the signal reflects only from the targeted measured material. BinMaster’s 80 GHz radar level sensors are resistant to interference, while advanced filters ensure rapid signal processing and fast update rates. Advanced firmware constantly tracks echoes and automatically eliminates false echoes for reliable performance.

Suggestions for Solids

Grain, Feed & Petfood

  • 4° beam angle ideal for tall, narrow bins or bins with internal structure
  • Segmented cement grain bins with multiple compartments
  • Bins where the sensor must be mounted near the bin wall
  • Targeted locations on grain piles or flat storage warehouses
  • On large conveyors for distance measurement to detect overloading
  • Rendering operations, measuring feather or bonemeal

Food Processing

  • Flour, sugar, and salt silos
  • Dry ingredients and malted grains
  • Tanks of any height or with internal structure

Cement or Mining

  • Clinker silos with excessive noise and high temperatures
  • Tall or narrow finished cement silos with excessive dust
  • Adaptable to powders or bulk solids of raw and finished materials
  • Over moving belts and conveyors to prevent overloading
  • Inside rock crushers to monitor filling and emptying

Plastic Pellets, Powders, or Flakes

  • For narrow silos where the precise level is desired
  • In low-dielectric materials or materials with limited reflectivity

Sand and Aggregates

  • For tall narrow silos with excessive dust or noise
  • Mounted over piles or pits for level detection

Wood Chips or Pellets

  • Detecting level of materials with varying dielectrics and moisture levels
  • Performs in high steam environments characteristic of pelletizers

Power Plants

  • Monitoring level in coal feeders to ensure continuous supply
  • Detecting fly ash levels in ESP hoppers to prevent overfilling

    Like Them in Liquids

    Food for Humans and Animals

    Food ingredients: Liquid ingredients take many forms such as sugars, extracts, and oils that can be translucent, opaque, or transparent.

    Beverages: Makers of soft drinks, beer, liquor, energy drinks, or seltzers use water, juices, colorants, and additives in the production process.

    Animal fat: This ingredient is used at feed mills for feedstuffs for livestock and in pet foods. It is also used in the production of soap, lubricants, and fatty acids.

    Milk and dairy products: Raw milk storage, processing, and pasteurization tanks.

    Fat and oil processing: Margarine and shortening production using animal fats and oilseed processing for corn, canola, sunflower, and other oils for human consumption.

    Egg processing: Tanks storing water used for chilling, cleaning, pasteurizing, and liquid egg processing.

    Liquid food processing: Sauces, chocolates, and condiments measured as raw ingredients and finished products in storage tanks.


    Drinking or Purified Water

    Spring water containment: Drinking water from springs is monitored to ensure sufficient supply.

    Purified water tanks: Tanks that store purified water at facilities to ensure efficient plant operations and supply for periods of peak demand.


    Industrial Uses

    Process water: To ensure pressure pumps deliver a continuous supply of process water by monitoring the levels in storage tanks or open basins.

    Bulk industrial containers: Measuring levels in IBCs, drums, or totes installing a sensor in the lid or opening or measuring through a plastic wall.

    Industrial fluids: Hydraulic fluid, coolants, solvents, cleaners, lubricants, detergents, defoamers, degreasers, brighteners, cutting oils, metalworking fluids, rust and scale removers, and inhibitors.

    Industrial manufacturing: Process and day tanks, cooling towers, RO storage, or waste sumps.

    Wastewater: Bulk storage tanks, lift stations, open channels, or neutralization tanks.

    Cement additives: Measure tanks containing accelerators, retarders, extenders, dispersants, and other characteristic control agents used to modify the properties of cement slurries.

    Plasticizer tanks: Measure liquid resins like epoxies, polyurethanes, silicones, and polyester or other types of liquid resins.

    Frac or silica sand: Monitoring fracture fluids, process water tanks, and flocculants used in dredge pump mining methods, sedimentation ponds, and wastewater used for processing and washing.

    Water-cooled chillers: Ensure a continual water supply for industrial and batch water-cooled chillers by monitoring the level in holding tanks.


    Oil & Fuels

    Automotive oil and fluids: Monitoring levels of new and waste fluids such as oil, radiator, transmission, power steering, brake, and washer fluids, and air conditioning coolant.

    Diesel storage: Bulk storage, transfer tanks, and on-site fuel storage.

    Fuel tanks: Accurate measurement of fuels and oils to ensure an adequate supply is on hand for continuous operation.


    Chemicals

    Chemical processing: Monitor level in bulk storage tanks, industrial bulk containers (IBCs), or drums.

    Chemical tanks: Measuring the level of tanks where water is being treated with chemicals or clarifiers to ensure tanks are filled at levels for optimum dosage.

    Conditioning tanks: To ensure chemicals and precipitants are applied properly in optimal, low concentrations.

    Glues and adhesives: Measuring animal-based or synthetic adhesives containing PVA, ethanol, acetone, and other substances.


    Environmental

    Sewer overflows: Level monitoring to prevent capacity overloads during heavy rain events. Ensure too much water will not enter the treatment processes.

    Dam levels: Continuous measurement of the water levels at dams can be coupled with wireless data transmission for either drinking water supplies or flood control.

    Flood control: Monitoring river levels at gauge stations is essential to detecting and alerting when water levels are reaching flood stage.

    River level measurement: To measure levels of rivers used for drinking water or to detect flooding conditions caused by dam releases or inclement weather.

    Open air applications: Utilize these sensors on ships or bridges to measure the distance to the water.


    Water & Wastewater

    Municipal water treatment: Monitoring levels in open channels, lagoons, canals, lift stations, sediment tanks, clarifiers, and chemical feeding tanks.

    Pumping stations: Level measurement at the inlet shaft is used to control running of the pumps by alerting when they need to be turned on or off.

    Elevated storage tanks: Level monitoring is important to be sure that water pressure and supply is adequate during peak demand periods.

    Overflow basins: Sensors can provide overflow protection for sewage treatment plants during flooding or stormwater during heavy rainfall.

    Flocculant storage tanks: Monitoring the level of coagulant and flocking agents used remove minerals and organic particulates from water.

    Gravel bed filters: Ensuring a consistent level of water is fed into gravel filtration beds used to remove sediment matter.

    Open channels: Monitoring flow rate in a stream, irrigation channel, or unpressurized sewage pipe.

    Vacuum sewerage system: Used to measure wastewater tanks at pumping stations that use a vacuum system. Measures accurately in turbulence and foam.

    Sludge receiving stations: To measure the level of sewage sludge pumped from trucks (used to pump septic systems) into receiving tanks to control the input of sludge at the plant.

    Equalization basins: Measure levels to ensure consistent flow to downstream processes in wastewater treatment.

    Chemical tanks: Measurement of tanks storing chemicals used in the water treatment process.

    Accessories & Displays

    Non-Contact Radar Made Better by BinMaster

    You have many choices when it comes to a non-contact radar. What you might NOT get from other manufacturers are the options and accessories that make your installation simpler and more affordable. Plus, BinMaster supplies the complete solution from the sensor to the software and everything in between.

    Levels on a Local Display

    BinMaster offers several display modules to provide access to level data locally at the bin. This allows workers and drivers quick access to inventory levels from the ground or a vehicle. There is no need to visit a control room or the office. BinMaster will design a solution that fits your needs and budget based upon the number and location of your silos and where it is easiest to access data.

    Push-Button Control Console

    The BinMaster C-100-R control console provides convenient walk or drive-up access to level and volume data from BinMaster non-contact radar level sensors. It displays bin levels as feet or cubic feet, US gallons or bushels, and tons, metric tons, or kilograms. Measurements can be output as height of material or distance to product (headroom).

    Configuration of the C-100-R uses intuitive push-button controls in English or Spanish. User settings are stored in a non-volatile memory to protect against data loss in the event of power failure. The C-100-R features a 24 VDC power supply and a NEMA 4X rating for resistance to dust and rain.

    Digital Panel Meters (DPMs)

    BinMaster’s digital panel meters provide easy-to-use, easy-to-see solutions for bin level monitoring and control. They have ultra-bright LED displays that are easily seen in bright sunlight, smoke, fog, or dusty environments. DPMs are offered in single and dual-line configurations and can be installed at each bin or set up to accommodate readings from multiple bins from a single DPM.

    Reduce & Simplify Wiring

    BinMaster helps you simplify the installation of an inventory management system. Programmable, compact devices replace wires with over-the-air technology to reduce wiring and labor costs. BinMaster’s solution-centric approach ensures countless scalable configurations for any size plant.

    BinCloud® Gateway

    The BinCloud® Gateway is used to flow data quickly and seamlessly in and out of a network. In an inventory management system, the BinCloud® Gateway receives measurement data from level sensors and sends it to a control room, BinCloud®, or Binventory® software. A solar-powered gateway can power up to 4 radar sensors and the gateway enables remote vessels without electrical service to be monitored by a BinCloud inventory system.

    LoRa Transceiver

    The LoRa Transceiver—LTR-100—is a wireless device used to connect sensors with a 2 or 4 wire 4-20 mA output to a BinCloud® Gateway using long range radio technology. The LTR-100 is a low-cost option to connect analog sensors to a gateway used to access BinCloud® or Binventory® data from the cloud.

    HART Consolidator Module

    The HART Consolidator Module—HCM-100—easily connects multiple sensors using the HART protocol to the BinCloud Gateway. It accommodates up to 15 HART v7 enabled sensors in a daisy-chain (multi-drop) sensor network wiring configuration.

    Inventory Management Software Options

    Phone, Tablet, or PC - Your choice!

    You buy sensors because you need data to manage your inventory. With BinMaster, you can pick where you want the data to go. Data from the sensors can be sent to your PLC or a console if you prefer. If you are looking for powerful, user-friendly options BinMaster gives you many software alternatives.

    Software-as-a-Service (SaaS)

    The BinCloud® platform provides you with a robust inventory management experience that works anywhere you have a connection to the internet. No software installation, IT department, or server hosting is needed. You can access levels and receive alerts on your phone, tablet, or PC.

    BinCloud is compatible with many BinMaster sensors as well as other brands of sensors that have a 4 -20 mA analog output or Modbus RTU. It can be used for remote inventory monitoring from multiple locations around the state, country, or worldwide.

    BinCloud is made for your industry

    No matter what you produce, BinCloud has you covered!

    BinView®: Inventory management of solids or liquids in bins, tanks, or silos in any process industry.

    CementView®: For ready-mix concrete and any sand, gravel, or mining operation.

    ResinView®: For plastics manufacturers and molders storing plastic pellets, powders, or liquefied resin.

    FeedView®: Customized for hog, poultry, dairy, and beef growers managing bulk animal feed.

    AgriView®: For agricultural cooperatives, seed companies, and suppliers of fertilizers and ag chemicals.

    BinCloud® Phone Application

    Get to your inventory fast on your phone, wherever you are. QuickViews of your vessels keep you on top of inventory. Drill down to the details for each vessel. Check the status of each location. Focus on just the vessels that need attention.

    Download the BinCloud® app from Google Play or the App Store. It's free and part of your BinCloud subscription.

    Locally Installed Software

    No cloud necessary with Binventory®

    Don’t want your inventory in the cloud? Binventory® software from BinMaster installs on a PC on your LAN, WAN, or VPN. This PC software—formerly known as eBob—is used to manage inventory data from up to 255 vessels per sensor network. Use Binventory to send automated high and low-level alerts via text or email, visualize vessel levels, and generate usage reports. This one-time software purchase can be used by one end user or installed across your entire organization with no per-user licensing fees.

    This advanced software platform is compatible with non-contact radars and other BinMaster continuous level sensors or just about any sensor using the Modbus RTU or HART protocol. This makes Binventory a complete on-site solution for managing the inventory of either solids or liquids contained in bins, tanks, or silos.

    Copyright 2024, Garner Industries, Inc. All Rights Reserved
