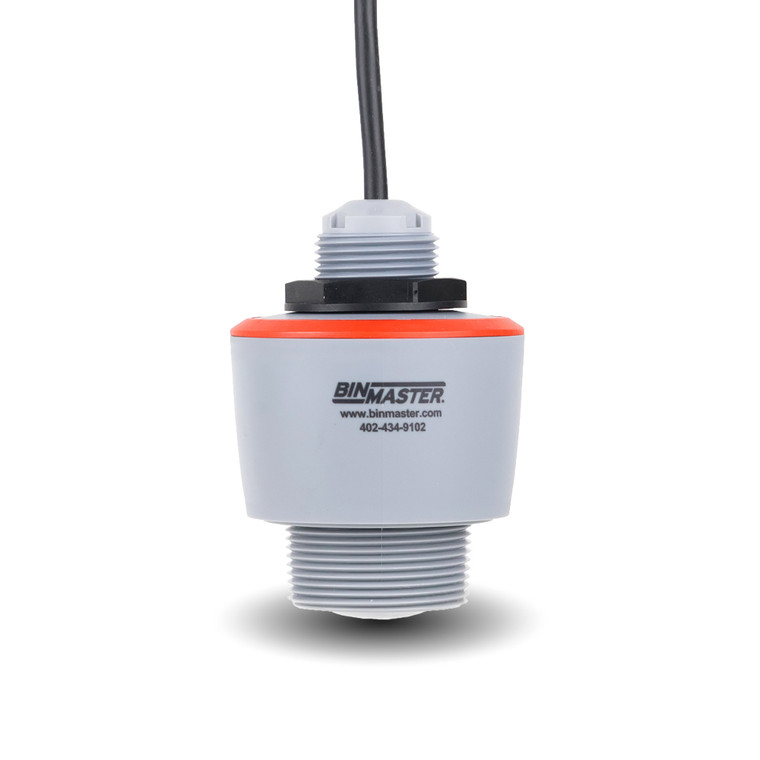

CNCR-110 Compact non-contact radar - 26 ft (8 M) - top connection

Request a Quote
SKU
CNCR-110.

The CNCR-110 is a compact 80 GHz radar for distances up to 26' (8m). It is installed using a polyurethane pigtail connection cable and has a top cable connection. These sensors are rated to IP66/IP68 (3 bar) with housings made from durable PVDF material that has excellent chemical, abrasion, flame resistance, and UV stability. The FKM seal provides heat and chemical resistance for long-lasting durability.

main product photo
default

Need assistance faster?
Give us a call Monday - Friday
8:00am - 5:00pm CST

Phone: (402) 434-9102
Email: [email protected]

Get a quote

The person responsible for your area will be in touch shortly

Overview
Applications
Specs
Downloads
Accessories
Video

Compact Non-Contact Radar: 80 GHz radar for tanks and silos up to 98’

Small size for smaller tanks. Easy to wire using a pigtail electrical connection. Bluetooth set up on your phone.

Where to use CNCR radar level sensors?

Small liquid tanks or solids silos. Install in existing vessel openings. Measures non-intrusively through IBCs or plastic vessels.

Where does level measurement data go?

Any BinCloud® inventory management software on your phone, tablet, or PC. Or send data to a local walk-up display or a PLC.

The difference between the four level sensor models:

CNCR-110: measures up to 26’, top pigtail connection

CNCR-120: measures up to 49’, top pigtail connection

CNCR-130: measures up to 49’, side pigtail connection

CNCR-190: measures up to 98’, top pigtail connection

Note: For solids, distances are 50% less.

Check with the factory for the latest hazardous approvals.

CNCR-100 series radars rock!

  • Narrow 8° beam works reliably in challenging conditions
  • Wall-mounted 3.5” or 8” brackets for simple installation
  • No dead zone, measures right up to the face of the sensor
  • Chemical resistant enclosure, IP Rated against dust and water ingress
  • Compact design fits in tight spaces, installs through existing openings
  • Increases safety, no climbing tanks, or working in confined spaces
  • No maintenance, low cost of ownership

Compact. Accurate. Tough. The little radar that could can.

ncr-80-non-contact-radar-installed
Inventory-Management

Inventory Management
Ensure adequate supply for production, prevent material shortages.

Shop Inventory Management
Remote-Monitoring

Remote Monitoring
Manage inventory while in the plant, while traveling, or away from the office.

Shop Remote Monitoring
vendor-managed-inventory

Vendor Managed Inventory
Engage suppliers in replenishing the supply chain to optimize purchasing.

Shop Vendor Managed Inventory
storage-dome

Storage Dome Monitoring
Monitor conveyed or truck loaded materials in large storage structures.

Shop Dome Monitoring
monitor-piles

Pile Monitoring
Manage pile height, size, and volume of bulk materials.

Shop Pile Monitoring
More Information
SKUCNCR-110.
Means of MeasurementRadar
Measurement TypeContinuous Level
MediumSolids, Liquids
Voltage 12-35 VDC
OutputsLoop Powered 4-20 mA
Ambient Temperature-40°F to +140°F (-40° to +60°C)
Process TemperatureUp to +145°F (62°C)
ApprovalsContact factory for latest updates.
Enclosure TypeIP 66, IP 68
Enclosure MaterialPlastic
Mounting1.5" Threaded NPT
Range26 ft. (8 M) liquids / 13 ft. (4 M) solids

Mounting Plates

Accessories

We are excited about the new NCR-86!

The CNCR compact non-contact radar packs 80 GHz of accuracy in a small sensor.

Quick start setup for the NCR-80 using BinDisc.

Here's how to wire your NCR-80 Modbus sensor.

Here's how to wire your NCR-80 Modbus sensor.

Instructions on wiring an NCR-80 Modbus to a digital panel meter.

CNCR-100 Series Brochures

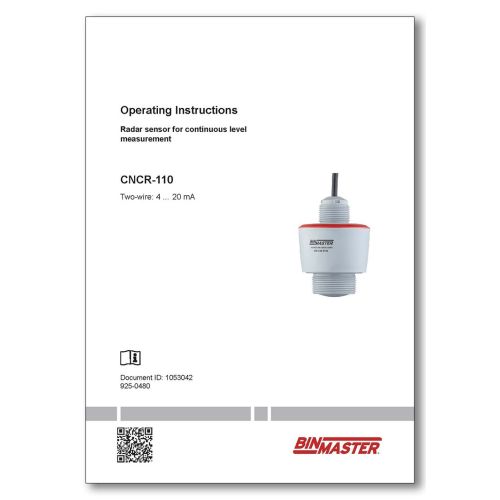

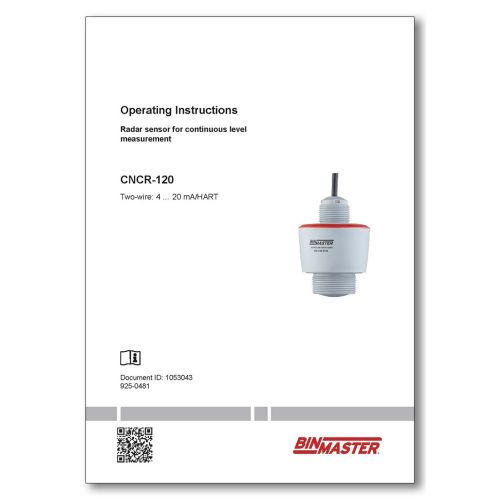

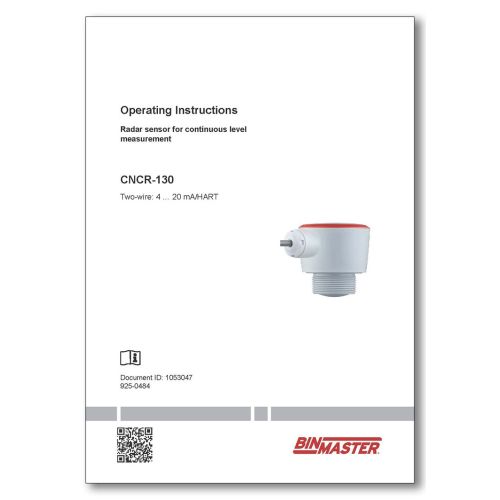

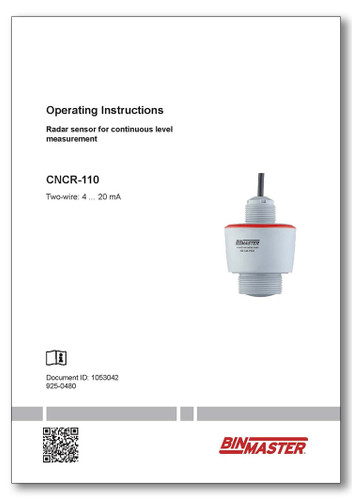

CNCR-100 Series Manuals

CNCR-100 Series Spec Drawings
