3DLevelScanner-S - standard

Request a Quote
SKU
730-0559

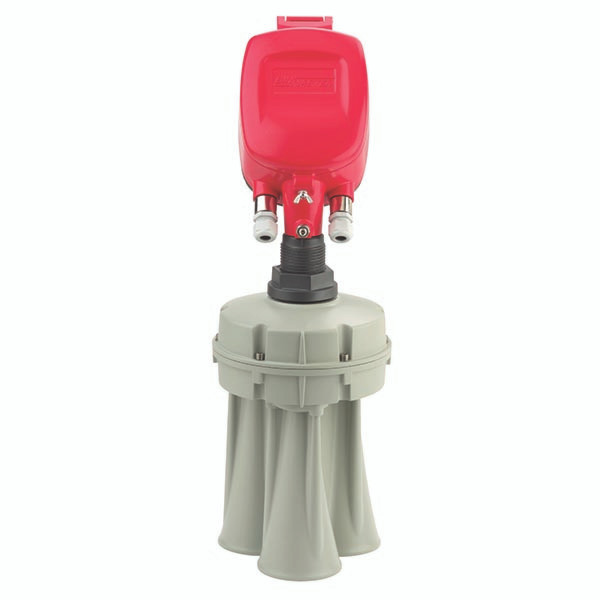

3DLevelScanner-S with 7.67” diameter horn, 20-36 VDC, 4-20 mA output / Hart protocol, and RS-485 communications. Determines the average volume of stored materials based on a 30º beam angle in silos up to 14’ diameter and 200’ tall. Unit comes with internal LCD display and 3DVision software. Hazardous location approved, FM listed for Class I, II, Division 1, Groups C, D, E, F & G. One year warranty.


main product photo
Overview
Applications
Specs
Downloads
Accessories
Video

3DLevelScanner: Multiple Point Measurement for Accurate Volume

Advanced acoustics technology measures material topography in dusty environments for effective non-contact volume measurement.

Need volume accuracy in irregularly piled materials?  3D visualization to detect sidewall buildup?

Advanced acoustics-based technology is a proven performer in dusty powders and bulk solids.

5 Ways 3D is different:

  1. Most level sensors only measure a single point
  2. Optional 3D visualization of material topography
  3. Detects cone up, cone down, and sidewall buildup
  4. Provides minimum, maximum, and average distances
  5. Accounts for surface irregularities for accurate bin volume

3D excels in unevenly piled material:

  • Grain, seed, feed, and food processing
  • Ethanol, bioenergy, and power plants
  • Aggregates and cement
  • Mining and metals
  • Chemical processing and plastics manufacturing
  • Pulp, paper, and wood pellets
3d-scanner-mounted
Inventory-Management

Inventory Management
Ensure adequate supply for production, prevent material shortages.

Shop Inventory Management
Remote-Monitoring

Remote Monitoring
Manage inventory while in the plant, while traveling, or away from the office.

Shop Remote Monitoring
vendor-managed-inventory

Vendor Managed Inventory
Engage suppliers in replenishing the supply chain to optimize purchasing.

Shop Vendor Managed Inventory
storage-dome

Storage Dome Monitoring
Monitor conveyed or truck loaded materials in large storage structures.

Shop Dome Monitoring
monitor-piles

Pile Monitoring
Manage pile height, size, and volume of bulk materials.

Shop Pile Monitoring
More Information
SKU730-0559
Measurement TypeContinuous Level
MediumSolids
Voltage 20-32 VDC
OutputsLoop Powered 4-20 mA, MODBUS protocol, HART
Ambient Temperature-40°F to +185°F (-40°C to +85°C)
Process TemperatureUp to +176°F (80°C)
ApprovalsCFM Intrinsically Safe Class I, II, Division I, Groups C, D, E, F, G (US & Canada)
Range200 ft. (61 M)

Brochures

3DLevelScanner Product Listing (1.00 MB)
Brochure - 3D Level Scanner (1.65 MB)
Brochure - 3D Angled Mounting Flange (373.54 kB)
Bulk Density Chart (663.01 kB)

Manuals

Manual - 3D Hardware (2.66 MB)
Manual - 3D MVL Multi Scanner System (2.62 MB)
Manual - 3D Multivision Software (4.23 MB)
Manual - 3D Connection Guide (1.01 MB)
Manual - 3D Neck Extension Assembly (448.56 kB)

Spec Drawing

Application Worksheet - 3D Application Approval Form (AAF) (487.03 kB)
418-0277 - Spec Drawing - 3D Level Scanner Dimensions (686.15 kB)
299-0791 - Spec Sheet -- 3D Flange Adapter Plate (212.07 kB)
418-0245 - Spec Sheet - 299-0791 Flange Adapter Plate (447.01 kB)
418-0231 - Spec Sheet - 416-0565 Mount Assembly Kit (460.33 kB)
418-0232 - Spec Sheet -416-0566 SS Mount Assembly Kit (459.63 kB)
418-0237 - Spec Sheet - 416-0650 0 Degree Scanner Mounting Kit (445.15 kB)
418-0233 - Spec Sheet - 416-0571 0 Degree Mount Assembly (463.92 kB)
418-0228 - Spec Sheet -416-0551 5 Degree Mounting Assembly (518.30 kB)
418-0238 - Spec Sheet - 416-0651 5 Degree Scanner Mounting Kit (474.68 kB)
418-0239 - Spec Sheet - 416-0652 10 Degree Scanner Mounting Kit (473.81 kB)
418-0177 - Spec Sheet -416-0552 10 Degree Mount Assembly (511.71 kB)
418-0240 - Spec Sheet - 416-0653 15 Degree Scanner Mounting Kit (458.08 kB)
418-0229 - Spec Sheet - 416-0553 15 Degree Mounting Assembly (488.00 kB)
418-0241 - Spec Sheet - 416-0654 20 Degree Scanner Mounting Kit (470.56 kB)
418-0230 - Spec Sheet - 416-0554 20 Degree Mounting Assembly (490.24 kB)
418-0242 - Spec Sheet - 416-0655 30 Degree Scanner Mounting Kit (473.37 kB)
418-0195 - Spec Sheet - 416-0555 30 Degree Mount Assembly (490.55 kB)
418-0226 - Spec Sheet - 416-0596-416-0592 2' 3D Scanner Extension (591.16 kB)
418-0234 - Spec Sheet - 416-0597-416-0593 4' Scanner Extension (563.98 kB)
418-0235 - Spec Sheet -416-0598-416-0594 6' Scanner Extension (599.17 kB)
418-0265 - Spec Sheet - 416-0662 3D M, MV, RL (647.76 kB)
418-0236 - Spec Sheet - 416-0595 10' Scanner Extension (636.09 kB)

Mounting Plates

Extensions

Introductory animation about the3DLevelScanner.

High level overview of the 3DLevelScanner.

Learn about the 3D MVL multi-scanner system for large bins.

Find out what makes 3D different from other level sensors.

Helpful tips for installing the 3DLevelScanner.

3D is great for food ingredients. Here's why.

All the features of the 3DLevel Scanner in 1 minute.
