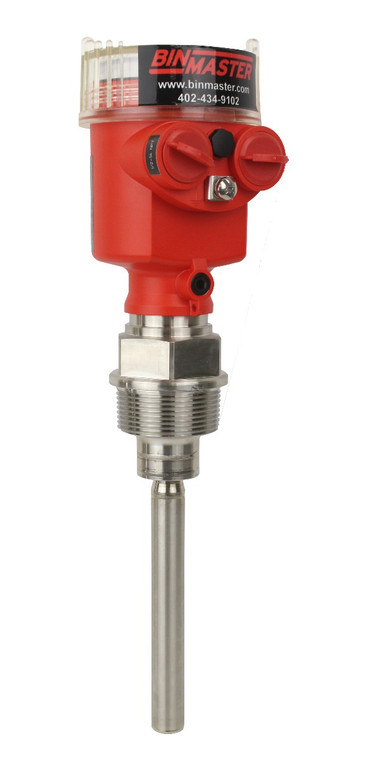

VR-90 - Vibrating probe level sensor with 4.92” buildup resistant round rod
| Means of Measurement | Vibrating Rod |
|---|---|
| Measurement Type | Point Level |
| Medium | Solids |
| Voltage | 20 to 250 VAC/DC |
| Search Voltage | 220 VAC |
| Outputs | Relay DPDT 3 Amp AC or 1 amp D-250 VAC max NPN/PNP Transistor |
| Ambient Temperature | -40°F to +176°F (-40°-to +80 °C) |
| Process Temperature | Up to +400°F (204°C) |
| Approvals | Contact factory for latest updates. |
| Enclosure Type | IP 66, IP 67, IP 68 |
| Enclosure Material | Die cast aluminum |
| Mounting | 1" NPT, 1.25" NPT, 1.5" NPT, 2" Flange |
