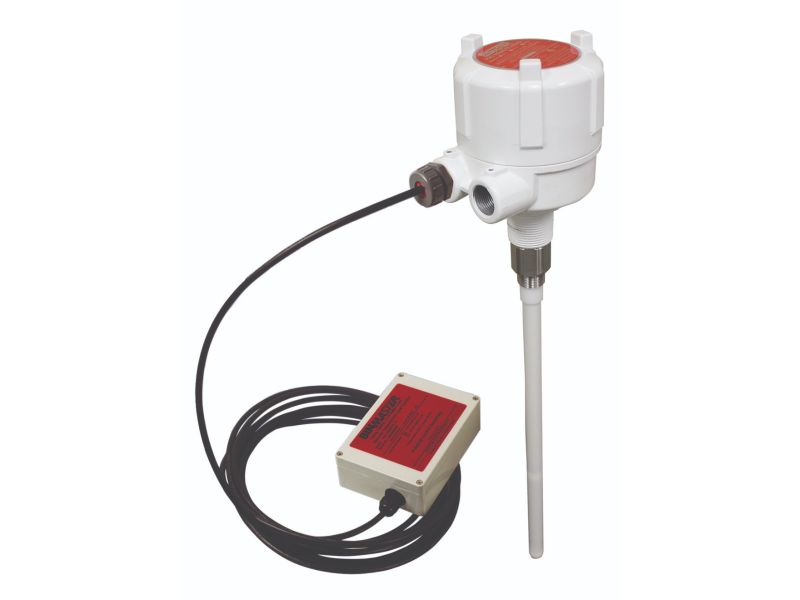

PRO Remote 25’ 115 power pac with remote electronics

Request a Quote
SKU
PR1.

PRO Remote 25’ 115 power pac with remote electronics up to 25’ from sensor, 115 VAC, intrinsically safe, hazardous location approved, C/US listed for Class I, Groups C & D, Class II, Groups E, F, G (Must order triax cable separately)

main product photo
default

Need assistance faster?
Give us a call Monday - Friday
8:00am - 5:00pm CST

Phone: (402) 434-9102
Email: [email protected]

Get a quote

The person responsible for your area will be in touch shortly

Overview
Applications
Specs
Downloads
Accessories
Video

PRO Remote: Capacitance Probe with Remote Electronics

This CSA Class II capacitance sensor allows the electronics to be installed up to 75 feet away from the sensing probe to avoid hostile conditions such as high temperatures or vibration.

High vibration, temps, or extreme conditions?  The Pro Remote puts the electronics away from the problem.

The Pro Remote ensures long service life and continuous operation with a design that puts the electronics in a safe environment.

How and where to use PRO Remote:

  • As a point level detection and process control for solid, liquid, or slurry materials
  • Aggressive materials such as coal or fly ash; power, mining, and foundries
  • Processing of plastics, chemicals, foodstuffs, or pharmaceuticals
  • Milling operations processing feed, grain, wood, or paper

5 Features that make PRO Remote ideal for processors:

  1. “Quick-Set” simple calibration
  2. Adjustable time delay to 10 seconds prevents false alarms
  3. PRO-Shield compensates for material buildup
  4. Fail-safe that’s switch selectable high or low
  5. LED indicates when material contacts with probe
pro-remote-capacitance-probe
3D-overflow_1

Overflow Prevention
High level alerts to avoid over-filling vessel

Shop Overflow Prevention
material-outage

Material Outages
Low level alerts eliminate empty conditions

Shop Outage Prevention
chute-clogged

Plugged Chutes
Detect when chutes are clogged with material

Shop Plugged Chutes
process-control

Process Control
Switching relay to turn a process off or on

Shop Process Control
conveyor-damage

Conveyor Overload
Prevent jamming or damaging conveyors

Shop Conveyor Overload
More Information
SKUPR1.
Means of MeasurementCapacitance
Measurement TypePoint Level
MediumSolids
Voltage 115 VAC
OutputsRelay DPDT 10 Amp - 250 VAC max
Ambient Temperature-40°F to +185°F (-40°C to +85°C)
Process TemperatureUp to +500°F (260°C)
ApprovalsCSA/US Class I, Groups C & D and Class II, Groups E, F & G, CSA Class II, Groups E, F & G
Enclosure TypeNEMA 4X, NEMA 5, NEMA 12
Enclosure MaterialDie cast aluminum
Mounting1.25" NPT
Conduit Entry0.75" NPT

Mount Plates

Accessories

Introductory video about capacitance probes.

How to calibrate and wire a capacitance probe.

How to wire a capacitance probe to a light.

Mini capacitance probes for point level detection.

Pro Remote Brochures

Pro Remote Manuals

Pro Remote Spec Drawings
