Mounting Compact Radars
Wall mount or top mount?

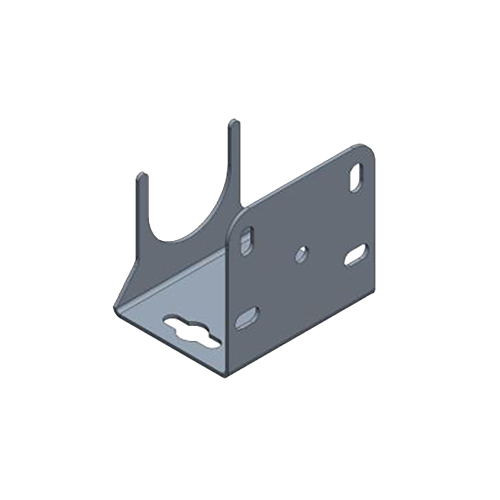

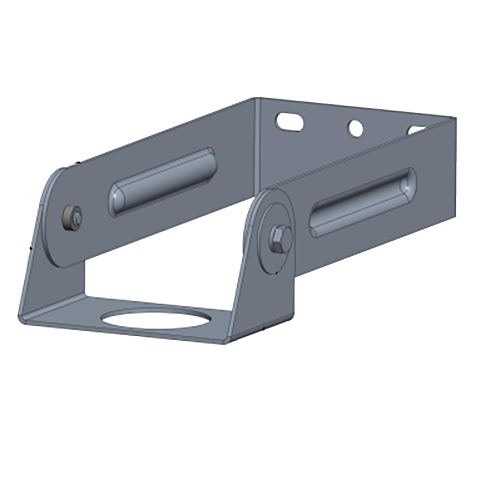

BinMaster offers a CNCR wall mount bracket made of stainless steel that extends either 3.25” or 8.0” into the vessel. These mounting brackets are offered with a 1.0” or 1.5” opening. A stainless steel ceiling mounted bracket with a 1.5” opening is another option for sanitary process systems.

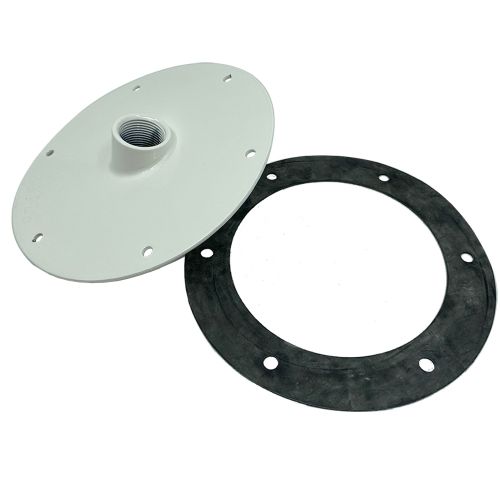

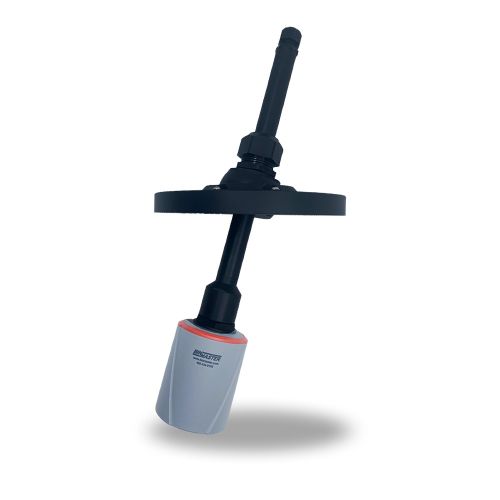

If you want to aim the radar beam, select a 1.5” swivel mount made of impact resistant plastic that can swivel in one direction up to 40°. All CNCR sensors except the CNCR-190 can also be used with a powder coated, carbon steel 1.5” NPT mounting plate in 0°, 5°, 10°, and 30° angles. The CNCR-190 uses a 1.0” flat mounting plate.
