Threaded - NCR-86 Radar level sensor

SKU
NCR-86-T

This radar level sensor measures solids or liquids! The NCR-86 mounts simply through a 1.5” NPT threaded connection. It is compact and lightweight, yet resistant to interference from dust, steam, and noise. Performs accurately in excessive temperatures and high-pressure vessels.


NCR-86: The Radar for Solids AND Liquids

The BinMaster NCR-86 is a universal radar sensor for continuous level measurement of liquids and bulk solids for all process conditions.

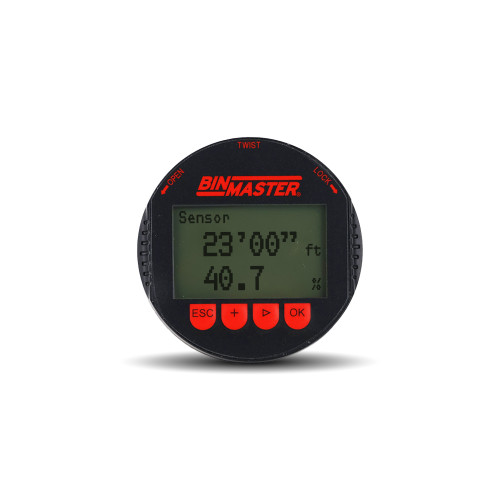

Configure the sensor using the BinMaster Sensor App on your phone or PC or use the BinDisc module to quickly set up the NCR-86 for any application.

Configurations to customize your-86 radar

  • Aluminum, plastic and stainless-steel housing
  • 2- or 4-wire 4-20 mA/ HART and Modbus outputs
  • Adapter flanges, mounting straps or swiveling holders
  • Non-EX or with CSA, ATEX, or IEC approvals

Robust construction, rugged enclosures, and encapsulated electronics ensure the NCR-86 works reliably and safely even in excessive conditions.

NCR-86 makes monitoring inventory easy

  • Inventory access from BinCloud
  • Fast and accurate in challenging conditions
  • Non-contact, maintenance-free operation
  • One sensor configures to any application

What’s great about the NCR-86

Solids or liquids: It’s adaptable to material of any bulk density or specific gravity.

Accuracy and measuring range: Accuracy of ± 1 mm at distances up to 393' or 120m.

Protection from cyber-attacks: Designed to IT Security standard IEC 62443-4-2.

Hot temperatures, high pressure: Process temps to 176°F, process pressure to 40 bar.

Immune to extreme environments: Accurate in excessive dust, steam, or noise.

Functional safety: SIL, IEC 615111 to reduce failures and protect from hazardous events.

One radar. Any solid or liquid. Super simple!

ncr-80-non-contact-radar-installed
Inventory-Management

Inventory Management
Ensure adequate supply for production, prevent material shortages.

Remote-Monitoring

Remote Monitoring
Manage inventory while in the plant, while traveling, or away from the office.

vendor-managed-inventory

Vendor Managed Inventory
Engage suppliers in replenishing the supply chain to optimize purchasing.

storage-dome

Storage Dome Monitoring
Monitor conveyed or truck loaded materials in large storage structures.

monitor-piles

Pile Monitoring
Manage pile height, size, and volume of bulk materials.

More Information
SKUNCR-86-T
Means of MeasurementRadar
Measurement TypeContinuous Level
MediumSolids, Liquids
Voltage 9.6-48 VDC, 90-253 VAC
OutputsMODBUS protocol, 4-20 mA / HART
Ambient Temperature-40°F to +176°F (-40°-to +80 °C)
Process TemperatureUp to +176°F (80°C)
ApprovalsContact factory for latest updates.
Enclosure TypeNEMA 4X, NEMA 6P
Enclosure MaterialDie cast aluminum, Plastic, Stainless Steel
MountingThreaded
Conduit Entry0.5" NPT or M20
Range80 ft. (24 M)

Mounting Plates

Accessories

Learn about the powerful NCR-80 80 GHz non-contact radar level sensor.

The CNCR compact non-contact radar packs 80 GHz of accuracy in a small sensor.

Quick start setup for the NCR-80 using BinDisc.

Here's how to wire your NCR-80 Modbus sensor.

Instructions on wiring an NCR-80 Modbus to a digital panel meter.

We couldn't contain our excitement for the new CNCR!

NCR-86 Brochures

English NCR-86 Manuals & Quick Start Guides

Spanish NCR-86 Manuals & Quick Start Guides

German NCR-86 Manuals & Quick Start Guides

French NCR-86 Manuals & Quick Start Guides

Portuguese NCR-86 Manuals & Quick Start Guides
