Metal Jacketed - NCR-86 Radar level sensor


Measure solids or liquids at distances up to 393 feet with the NCR-86 metal-jacketed level sensor.This versatile radar level sensor has built-in 80 GHz frequency making it adaptable to material of any bulk density or specific gravity.

NCR-86: The Radar for Solids AND Liquids

The BinMaster NCR-86 is a universal radar sensor for continuous level measurement of liquids and bulk solids for all process conditions.

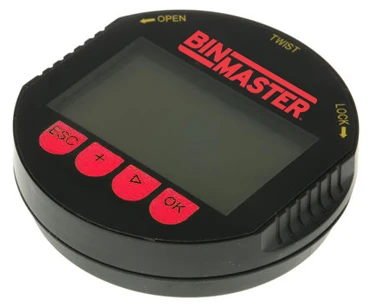

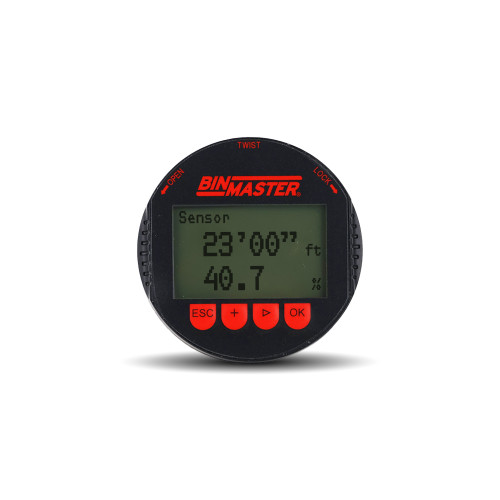

Configure the sensor using the BinMaster Sensor App on your phone or PC or use the BinDisc module to quickly set up the NCR-86 for any application.

Configurations to customize your-86 radar

  • Aluminum, plastic and stainless-steel housing
  • 2- or 4-wire 4-20 mA/ HART and Modbus outputs
  • Adapter flanges, mounting straps or swiveling holders
  • Non-EX or with CSA, ATEX, or IEC approvals

Robust construction, rugged enclosures, and encapsulated electronics ensure the NCR-86 works reliably and safely even in excessive conditions.

NCR-86 makes monitoring inventory easy

  • Inventory access from BinCloud
  • Fast and accurate in challenging conditions
  • Non-contact, maintenance-free operation
  • One sensor configures to any application

What’s great about the NCR-86

Solids or liquids: It’s adaptable to material of any bulk density or specific gravity.

Accuracy and measuring range: Accuracy of ± 1 mm at distances up to 393' or 120m.

Protection from cyber-attacks: Designed to IT Security standard IEC 62443-4-2.

Hot temperatures, high pressure: Process temps to 176°F, process pressure to 40 bar.

Immune to extreme environments: Accurate in excessive dust, steam, or noise.

Functional safety: SIL, IEC 615111 to reduce failures and protect from hazardous events.

One radar. Any solid or liquid. Super simple!


Inventory Management
Ensure adequate supply for production, prevent material shortages.


Remote Monitoring
Manage inventory while in the plant, while traveling, or away from the office.


Vendor Managed Inventory
Engage suppliers in replenishing the supply chain to optimize purchasing.


Storage Dome Monitoring
Monitor conveyed or truck loaded materials in large storage structures.


Pile Monitoring
Manage pile height, size, and volume of bulk materials.

More Information
Means of MeasurementRadar
Measurement TypeContinuous Level
MediumSolids, Liquids
Voltage 9.6-48 VDC, 90-253 VAC
OutputsMODBUS protocol, 4-20 mA / HART
Ambient Temperature-40°F to +176°F (-40°-to +80 °C)
Process TemperatureUp to +176°F (80°C)
ApprovalsContact factory for latest updates.
Enclosure TypeNEMA 4X, NEMA 6P
Enclosure MaterialDie cast aluminum, Plastic, Stainless Steel
MountingSwiveling Flange
Conduit Entry0.5" NPT or M20
Range394 ft. (120 M)

Mounting Plates


Learn about the powerful NCR-80 80 GHz non-contact radar level sensor.

The CNCR compact non-contact radar packs 80 GHz of accuracy in a small sensor.

Quick start setup for the NCR-80 using BinDisc.

Here's how to wire your NCR-80 Modbus sensor.

Instructions on wiring an NCR-80 Modbus to a digital panel meter.

We couldn't contain our excitement for the new CNCR!
