LL-100 - Laser level sensor - 160 ft. maximum

SKU
730-5176

LL-100 - Laser level sensor, 1 ft to 160 ft (0.3 m to 50 m) range with 0.4 in (10 mm) resolution and +/- 1” (25 mm) accuracy. Non-visible laser bean with <1° beam angle. 12-28 VDC power input with 4-20 mA (3-wire) output. Can be used in -4°F (-20°C) to 140°F (60°C) environments in an IP66 enclosure.

Laser Level Sensor: Narrow beam level measurement up to 160 feet

The LL-100 measures in a tight 1° beam ideal for narrow vessels or tight spaces.

Do you have a narrow silo with structure to avoid?

Need inventory control with a fast update rate and high accuracy?

Use this non-contact level sensor for:

  • Inventory management, plugged chute detection, and monitoring buildup
  • Low-dust bulk solids, pellets, or granular materials of all material dielectrics
  • Opaque liquids, even those with heavy vapors or stored under pressure

Features that make the LL-100 easy to use:

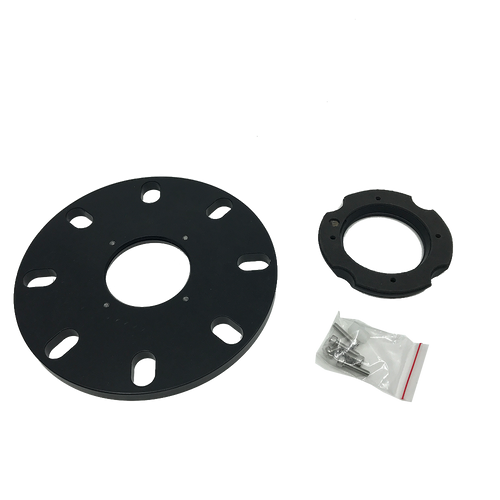

  • Adjustable mounting flange flexible up to 10°
  • Narrow beam can be directed to the output or bottom of the silo
  • Unaffected by surface angle, slope, texture, granularity, or material color
  • Accurate up to +/- 1” with 8 readings per second
  • Easily configured in the field using a USB port
  • Configuration can be performed without filling or emptying the silo
  • Integrated dust protection for minimal maintenance
  • Air purge option to keep lenses free of dust

Low-dust vessels in many industries and materials:

  • Minerals, mining, aggregate storage, and rock crushers
  • Plastics, chemicals, and fertilizers
  • Grain storage and food processing
  • Pulp, paper, wood pellet, and biomass

Get fast, accurate laser level measurement in narrow vessels now!

laser-level-sensor-ll-100-silo
Inventory-Management

Inventory Management
Ensure adequate supply for production, prevent material shortages.

Remote-Monitoring

Remote Monitoring
Manage inventory while in the plant, while traveling, or away from the office.

vendor-managed-inventory

Vendor Managed Inventory
Engage suppliers in replenishing the supply chain to optimize purchasing.

More Information
SKU730-5176
Measurement TypeContinuous Level
MediumSolids
Voltage 24 VDC
Outputs4-20 mA
Process TemperatureUp to +160°F (50°C)
Enclosure TypeIP 66
Enclosure MaterialDie cast aluminum
Conduit EntryM16
Range150 ft. (45 M)

Mounting Plates

Displays

Battery-powered FVL and SPL lasers don't require wiring.

Lasers are just one of the level technologies showcased in BinMaster's corporate video.

See laser, radar, 3D, and ultrasonic products from BinMaster.

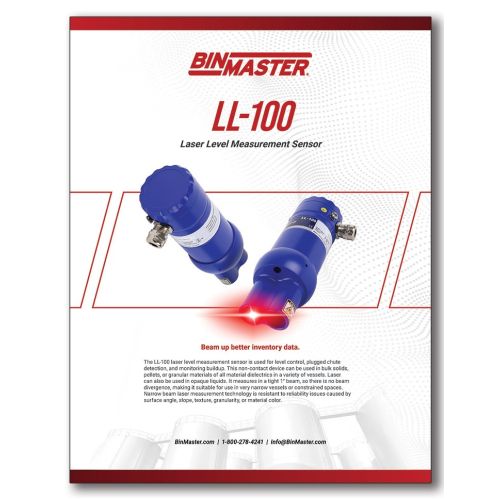

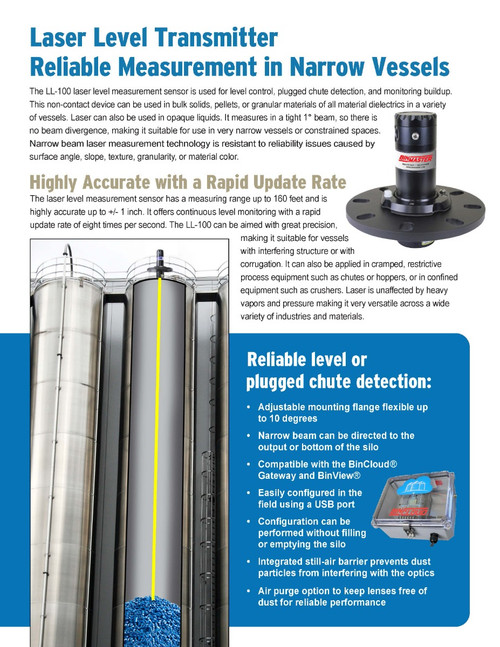

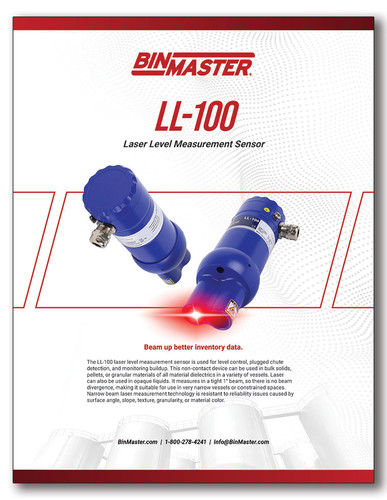

LL-100 Brochures

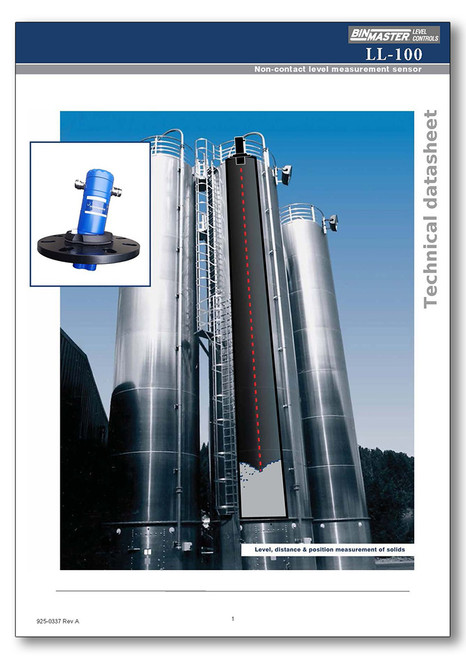

LL-100 Manuals
