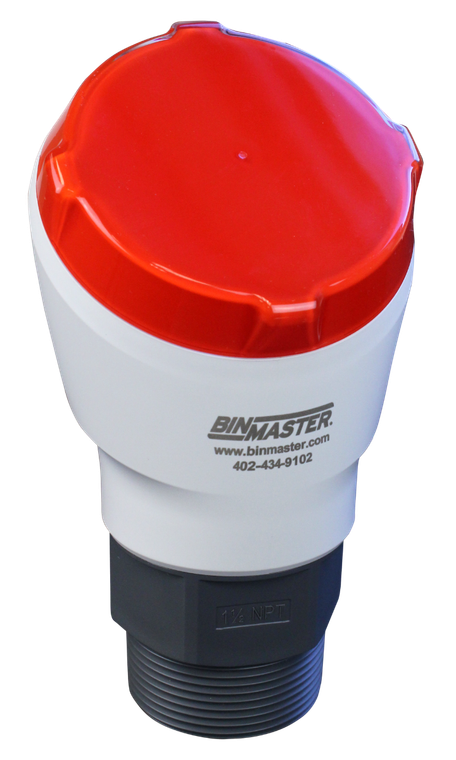

CNCR-220 Compact non-contact radar - 49 ft (15 M)


The CNCR-220 is a compact 80 GHz non-contact radar for distances up to 49 ft (15 M). It installs using a 1.5” threaded NPT or 1.5” threaded straight NPT connection. The enclosure is rated IP66/IP67, Type 4X to protect from dust and water damage.

Need assistance faster?
Give us a call Monday - Friday
8:00am - 5:00pm CST

Phone: (402) 434-9102
Email: [email protected]

Get a quote

The person responsible for your area will be in touch shortly

CNCR-200 Non-Contact Radars: 80 GHz accuracy and 1.5” NPT mounting

Bluetooth setup on your phone. Mounts fast through existing threaded or straight NPT connections. Measures liquid tanks, plastic IBCs through the wall, or short solids silos.

Looking for an alternative to an ultrasonic sensor?

Continuous level measurement with the 80 GHz radar signal is focused in a narrow beam that measures with accuracy of +/- 0.2”.

Want a radar sensor that works under harsh conditions?

Sensor is immune to condensation, turbulence, and foam. Not affected by fluctuating temperatures or pressure.

Models to make the most of your measurements:

CNCR-210: measures up to 26 feet

CNCR-220: measures up to 49 feet

CNCR-230: Up to 49 feet plus an LED display

Note: For solids, distances are 50% less.

Need hazardous approvals? Check with the factory.

You and your maintenance crew will love these sensors:

  • No dead zone, measures to sensor face
  • Two-wire 4-20 mA output
  • IP66/IP67, Type 4X dust and moisture resistant PVDF enclosure
  • FKM seal material for longevity under harsh conditions

Try this level sensor in these applications and more:

  • Foods, fats, and oils for humans or animals
  • Municipal drinking or purified water plants
  • Industrial processing of chemicals or fluids
  • Day tanks, cooling towers, or waste sumps
  • Plasticizer or resin tanks or silos
  • Oil and fuel storage tanks
  • Flood, river, dam, or sewer levels

Versatile. Resolute. Did we say 80 GHz?


Inventory Management
Ensure adequate supply for production, prevent material shortages.


Remote Monitoring
Manage inventory while in the plant, while traveling, or away from the office.


Vendor Managed Inventory
Engage suppliers in replenishing the supply chain to optimize purchasing.

More Information
Means of MeasurementRadar
Measurement TypeContinuous Level
MediumSolids, Liquids
Voltage 12-35 VDC
OutputsLoop Powered 4-20 mA
Ambient Temperature-40°F to +158°F (-40° to +70°C)
Process TemperatureUp to +176°F (80°C)
ApprovalsContact factory for latest updates.
Enclosure TypeIP 66, IP 67
Enclosure MaterialPlastic
Mounting1.5" Threaded NPT, 1.5" Threaded Straight
Range49 ft. (15 M) liquids / 25 ft. (7 M) solids

Mounting Plates


We are excited about the new NCR-86!

The CNCR compact non-contact radar packs 80 GHz of accuracy in a small sensor.

Quick start setup for the NCR-80 using BinDisc.

Here's how to wire your NCR-80 Modbus sensor.

Here's how to wire your NCR-80 Modbus sensor.

Instructions on wiring an NCR-80 Modbus to a digital panel meter.

CNCR-200 Series Brochures

CNCR-200 Series Manuals

CNCR-200 Series Spec Drawings
