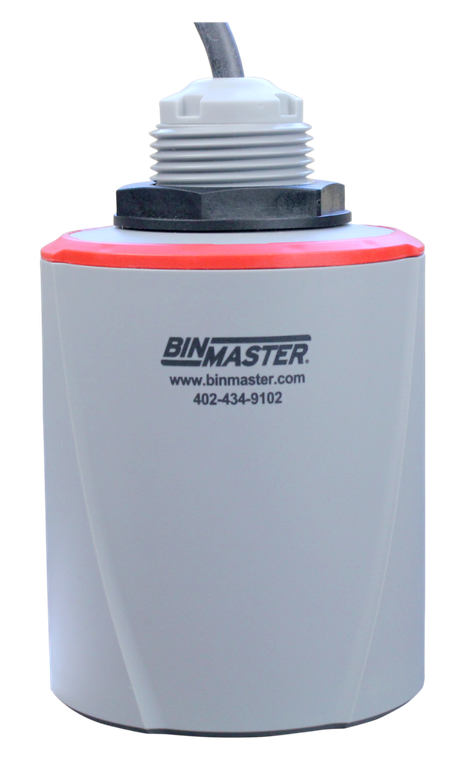

CNCR-190 Compact non-contact radar - 98 ft (30 M) - top connection


The CNCR-190 is a compact 80 GHz radar for distances up to 98' (30m). It is installed using a polyurethane pigtail connection cable and has a top cable connection. These sensors are rated to IP66/IP68 (3 bar) with housings made from durable PVDF material that has excellent chemical, abrasion, flame resistance, and UV stability. The FKM seal provides heat and chemical resistance for long-lasting durability.

Need assistance faster?
Give us a call Monday - Friday
8:00am - 5:00pm CST

Phone: (402) 434-9102
Email: [email protected]

Get a quote

The person responsible for your area will be in touch shortly

Compact Non-Contact Radar: 80 GHz radar for tanks and silos up to 98’

Small size for smaller tanks. Easy to wire using a pigtail electrical connection. Bluetooth set up on your phone.

Where to use CNCR radar level sensors?

Small liquid tanks or solids silos. Install in existing vessel openings. Measures non-intrusively through IBCs or plastic vessels.

Where does level measurement data go?

Any BinCloud® inventory management software on your phone, tablet, or PC. Or send data to a local walk-up display or a PLC.

The difference between the four level sensor models:

CNCR-110: measures up to 26’, top pigtail connection

CNCR-120: measures up to 49’, top pigtail connection

CNCR-130: measures up to 49’, side pigtail connection

CNCR-190: measures up to 98’, top pigtail connection

Note: For solids, distances are 50% less.

Check with the factory for the latest hazardous approvals.

CNCR-100 series radars rock!

  • Narrow 8° beam works reliably in challenging conditions
  • Wall-mounted 3.5” or 8” brackets for simple installation
  • No dead zone, measures right up to the face of the sensor
  • Chemical resistant enclosure, IP Rated against dust and water ingress
  • Compact design fits in tight spaces, installs through existing openings
  • Increases safety, no climbing tanks, or working in confined spaces
  • No maintenance, low cost of ownership

Compact. Accurate. Tough. The little radar that could can.


Inventory Management
Ensure adequate supply for production, prevent material shortages.


Remote Monitoring
Manage inventory while in the plant, while traveling, or away from the office.


Vendor Managed Inventory
Engage suppliers in replenishing the supply chain to optimize purchasing.


Storage Dome Monitoring
Monitor conveyed or truck loaded materials in large storage structures.


Pile Monitoring
Manage pile height, size, and volume of bulk materials.

More Information
Means of MeasurementRadar
Measurement TypeContinuous Level
MediumSolids, Liquids
Voltage 12-35 VDC
OutputsLoop Powered 4-20 mA, MODBUS protocol
Ambient Temperature-40°F to +176°F (-40°-to +80 °C)
Process TemperatureUp to +176°F (80°C)
ApprovalsContact factory for latest updates.
Enclosure TypeIP 66, IP 68
Enclosure MaterialPlastic
Mounting1" NPT
Range98 ft. (30 M) liquids / 49 ft. (15 M) solids

Mounting Plates


We are excited about the new NCR-86!

The CNCR compact non-contact radar packs 80 GHz of accuracy in a small sensor.

Quick start setup for the NCR-80 using BinDisc.

Here's how to wire your NCR-80 Modbus sensor.

Here's how to wire your NCR-80 Modbus sensor.

Instructions on wiring an NCR-80 Modbus to a digital panel meter.

CNCR-100 Series Brochures

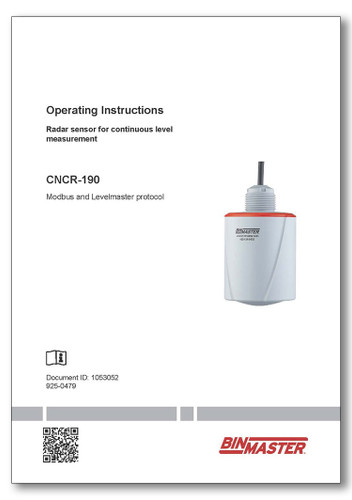

CNCR-100 Series Manuals

CNCR-100 Series Spec Drawings
