Extended Flexible Cable Hanging Rotary

Request a Quote

SKU

BMRX-Flexible-Cable-Hanging

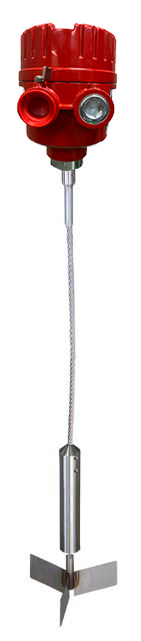

Extended flexible hanging BMRX extensions for use in heavy falling material

A rugged, flexible 8 mm steel cable in custom lengths 4” to 14’ long is attached to a top-mounted rotary.

This vertically oriented extension measures further down into the bin to prevent overfilling or to protect valuable sensors at the top of the bin.

A BinMaster expert will help you configure your custom rotary!

Skip to the end of the images gallery

Skip to the beginning of the images gallery

default

Need assistance faster?
Give us a call Monday - Friday
8:00am - 5:00pm CST

Phone: (402) 434-9102
Email: [email protected]

Get a quote

First and Last Name

Email Address

State

Country

Postal/Zip Code

Message

The person responsible for your area will be in touch shortly

I agree with the Terms and Conditions

Extended Rotary: Tailored to your application

Custom-made in days!

The BMRX-100/200/300 series rotaries can be customized fast with options competitors cannot match.

So many choices:

Rigid galvanized and stainless-steel extensions as well as flexible extensions for lump material
Horizontal extensions for thick bin walls and side mounting plates
Stainless steel process connections, heat tubes, and an ATEX option for special applications
19 different paddle types including insertable, collapsible paddles
Roof mounting plates for 0°, 10°, 20°, and 30° roofs and an adjustable top mount

Whether for routine MRO or a new rotary application, let our sales team get your new rotary customized for your point level needs!

Overflow Prevention
High level alerts to avoid over-filling vessel

Shop Overflow Prevention

Material Outages
Low level alerts eliminate empty conditions

Shop Outage Prevention

Plugged Chutes
Detect when chutes are clogged with material

Shop Plugged Chutes

Process Control
Switching relay to turn a process off or on

Shop Process Control

Conveyor Overload
Prevent jamming or damaging conveyors

Shop Conveyor Overload

More Information
SKU	BMRX-Flexible-Cable-Hanging
Means of Measurement	Rotary Paddle
Measurement Type	Point Level
Medium	Solids
Voltage	115 VAC, 230 VAC, 24 VAC, 24 VDC, 12-24 VDC
Outputs	Relay DPDT 10 Amp - 250 VAC max
Ambient Temperature	-40°F to +185°F (-40°C to +85°C)
Process Temperature	Up to +240°F (116°C)
Approvals	CSA/US Class I, Groups C & D and Class II, Groups E, F & G, Ex II 2G c 1/2D c Ex d IIB T4 Gb Ex tb IIIC T130C Db (Ta = -20C to +85C)
Enclosure Material	Die cast aluminum
Mounting	1.25" NPT, 1.5" NPT
Conduit Entry	0.75" NPT
