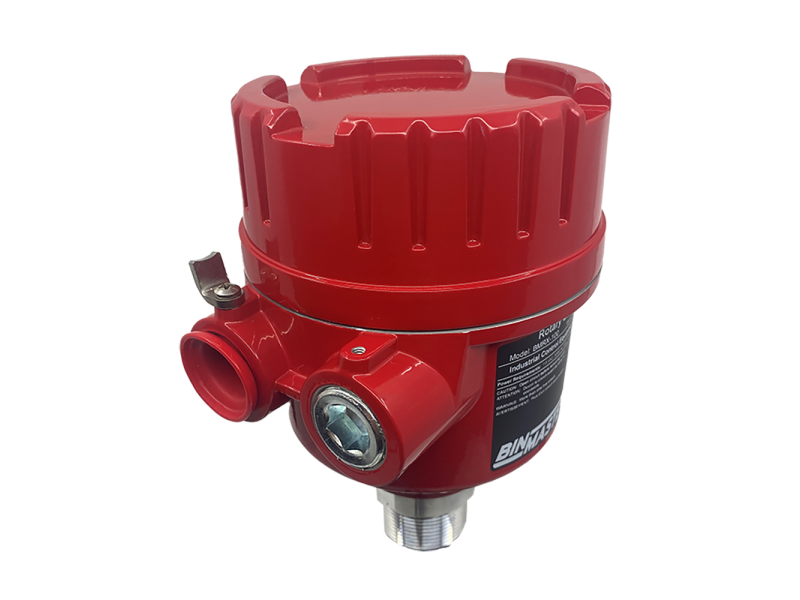

BMRX-200 - Rotary power pac - 115 VAC

SKU
BMRX-200.X1XAA

The new BMRX-200 rotary level paddle switch includes features like a PCB, a DPDT relay, and fail-safe high and fail-safe low to give you a few more options and flexibility over the BMRX-100.

The new red enclosure can be rotated once installed. This unique feature makes it easy to ensure conduit entries are always pointed toward the ground, mitigating the risk of moisture damaging internal components. New wire guides ensure wires don’t get stuck as you push them through conduit entries.

Couplers and paddles sold separately.

Rotary Level Indicator with PCB and DPDT switch

The BMRX-200 alerts to vessel levels in solid materials with a bulk density of 2 lb. to over 100 lb./cu. ft. Additional features including a PCB, a DPDT relay, and fail-safe high and low differentiate it from the BMRX-100.

On-board PCB

The BMRX-200 has a PCB versus a simple switch like the BMRX-100. This PCB allows the BMRX to add a DPDT relay and a fail-safe high and fail-safe low feature to the performance of the rotary.

Fail-safe relay outputs

The BMRX-200 relay outputs are designed to be “fail safe” in case of power failure. If power fails to the rotary, the relays will default to the output deemed “safe” for a high-level or low-level indicator application. Fail-safe high and fail-safe low switching output offered a bit more flexibility over the BMRX-100.

Two-switching outputs

A DPDT relay in the BMRX-200 allows the user to set up two switching outputs, instead of one like the SPDT switch on the BMRX-100. This switch can control two separate circuits and can be set to one of two locations for each circuit.

For example, one switching output in the BMRX-200 can be set for a covered condition and the other can be set for an uncovered condition.

New enclosure feature

The enclosure rotates to point conduit entries down upon installation. Protect internal components from moisture and extend service life.

Time for a new rotary? Call 402-434-9102 or order online now!

BMRX-200_IMG_4887-1000x
3D-overflow_1

Overflow Prevention
High level alerts to avoid over-filling vessel

material-outage

Material Outages
Low level alerts eliminate empty conditions

chute-clogged

Plugged Chutes
Detect when chutes are clogged with material

process-control

Process Control
Switching relay to turn a process off or on

conveyor-damage

Conveyor Overload
Prevent jamming or damaging conveyors

More Information
SKUBMRX-200.X1XAA
Means of MeasurementRotary Paddle
Measurement TypePoint Level
MediumSolids
Voltage 115 VAC
OutputsRelay DPDT 10 Amp - 250 VAC max
Ambient Temperature-40°F to +185°F (-40°C to +85°C)
Process TemperatureUp to +400°F (204°C)
ApprovalsUnlisted
Enclosure TypeNEMA 4X, IP 66
Enclosure MaterialDie cast aluminum
Mounting1.25" NPT
Conduit Entry0.75" NPT

Mount Plates

Paddles

Introductory video about the BMRX-100 rotary level indicator.

Learn all about BinMaster rotary level switches.

How to change a motor on a BMRX rotary paddle switch.

How to wire a light to a BinMaster rotary level indicator.

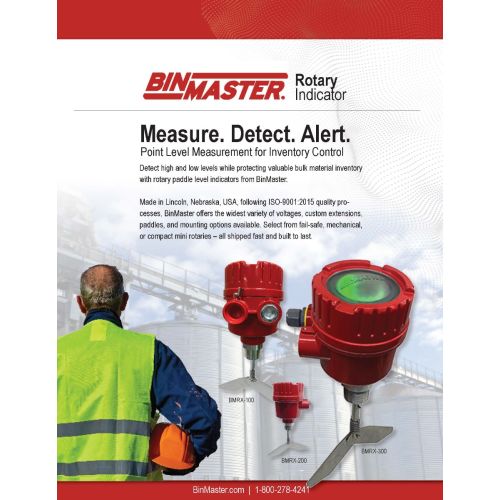

BMRX-200 Brochures

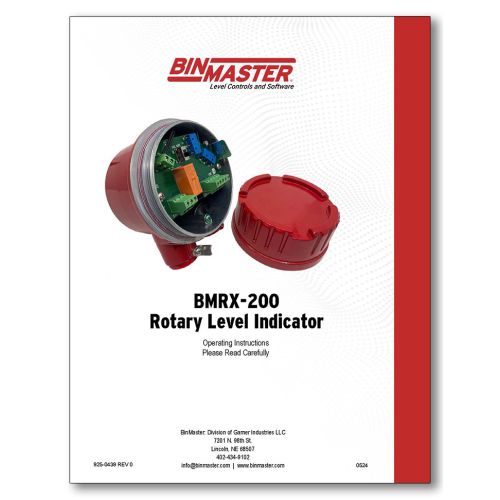

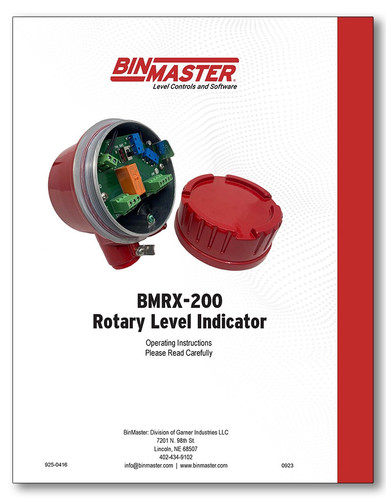

BMRX-200 Manuals

BMRX-200 Spec Drawings
